Construction: 1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5. 2.Insulation: Polyolefin copolymer electron-beam cross-linked. 3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked. 4.Sheath Color: Black/Red/Blue or as per customer's request.
Insulation Material：PPO
Contact Material：Copper,Tin plated

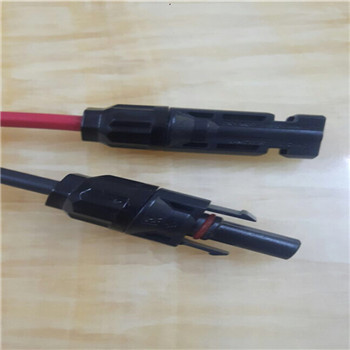

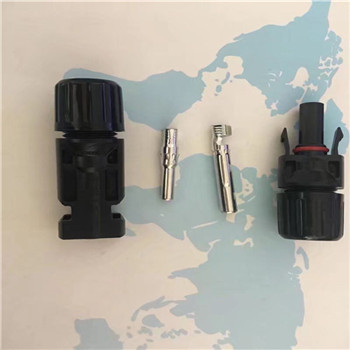

Connector：Solar Panel Connector
Wire Color：Black/Red
Wire Gauge:2.5mm2, 4mm2, 6mm2, 10mm2 (14/12/10/8AWG)
Rated Current:30A(2.5mm2),50A(4mm2,6mm2)
Rated Voltage:1000V/1500V DC
Test Voltage:8kV(50Hz,1min)
Wire Length:1m(3ft),2m(6ft),3m(10ft), 6m( 20ft), 10m(30ft), Can be customized
Waterproof protection:IP68
Application:Suitable for Generator, Solar Panel system.

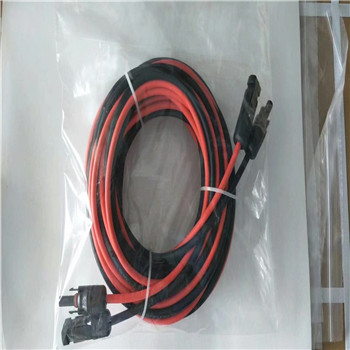

Package:Bulk Packing, we accept custom packing
